Specification:
| Model | Size | Power | Lumen | Light Efficiency |
| PCU A60-20W | 600*91*74mm | 20W | 2600LM | 130LM/W |
| PCU A60-30W | 600*91*74mm | 30W | 3900LM | 130LM/W |
| PCU A90-40W | 900*91*74mm | 40W | 5200LM | 130LM/W |
| PCU A120-40W | 1200*91*74mm | 50W | 6500LM | 130LM/W |
| PCU A120-50W | 1200*91*74mm | 60W | 7800LM | 130LM/W |
| PCU A150-50W | 1500*91*74mm | 50W | 6500LM | 130LM/W |
| PCU A150-60W | 1500*91*74mm | 60W | 7800LM | 130LM/W |
Features:

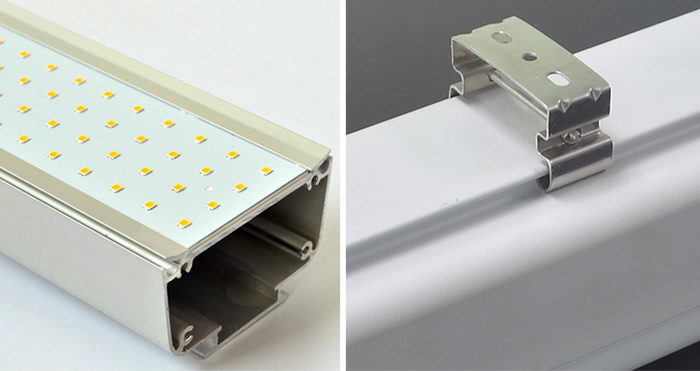

1.Material: Aluminium housing + PC cover + Aluminium board, excellent heat dissipation.
2. IP65, water-proof, dust-proof, corrosion-proof, pressure-proof, explosion-proof;
3. High impact test: IK10
4. Operating: -20~ +50°C
5. Light efficiency: 130LM/W at clear cover, 120LM/W at milky cover.
6. CRI:80~85Ra
7. Color temperature: 3000K, 4000K, 5000K, 6000K optional.
8. Power factor: >95%; Frequency: 50/60Hz, Working voltage: AC 85-265V
9. Low light decay, L70=50,000 Hours.
10. Dimmable version, sensor version or emergency version is available

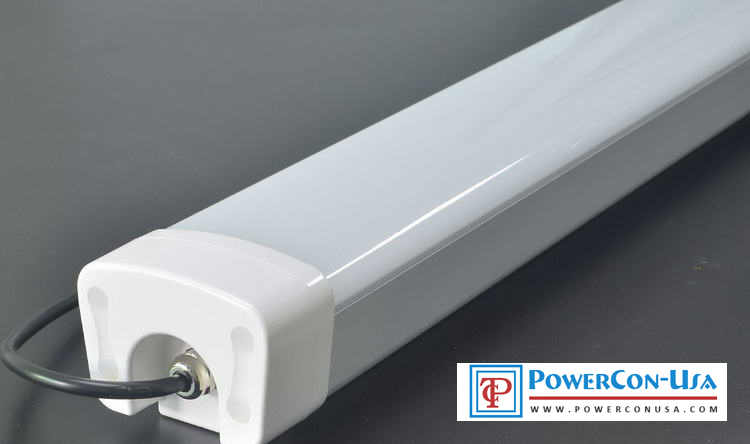

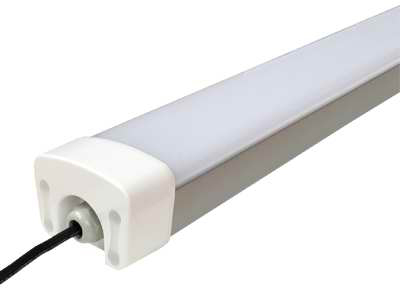

Product pictures:

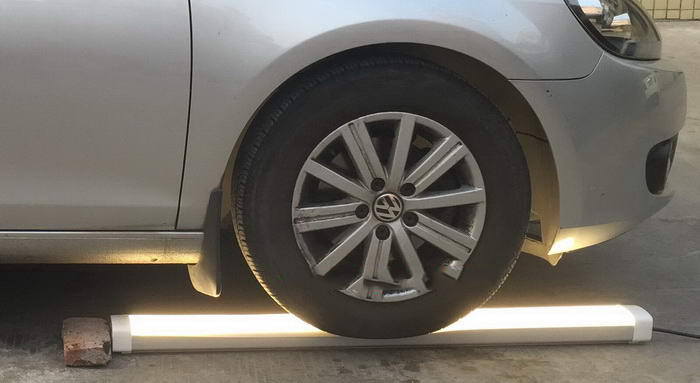

Water-proof, and pressure-proof testing:

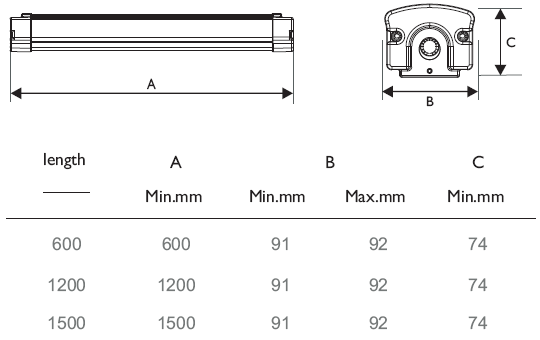

Dimension:
Warranty:
5 years. Powerconusa replaces the defective product with new one for free in warranty period.
Installation:

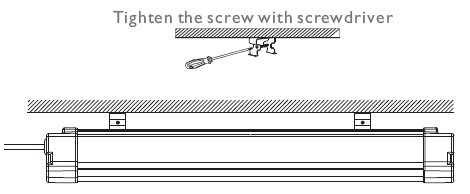

A. Ceiling Mount

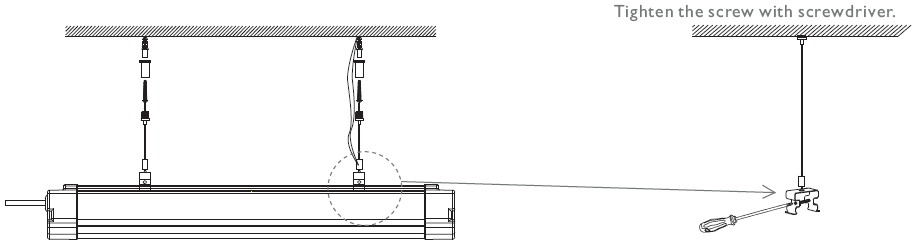

B. Suspending

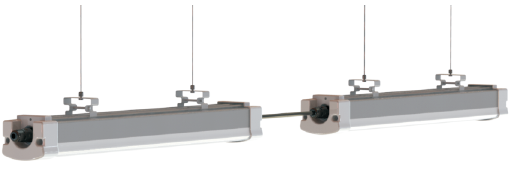

Series connection:
Application:
Parking place / Airport / Tunnel / Corridor / Gallery
Railway / Bus / MTR Station
Warehouse / Factory / Gas station / Supermarket

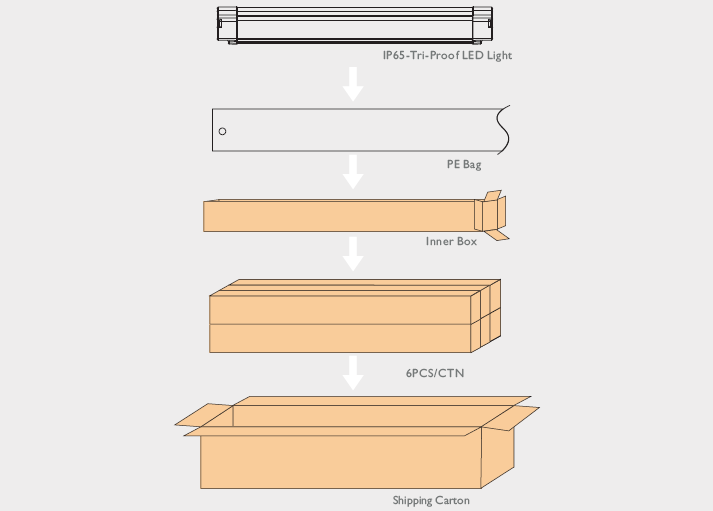

Package:
